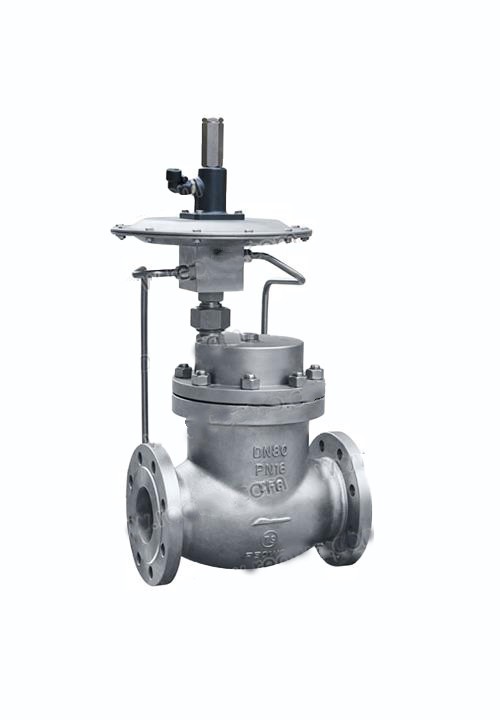

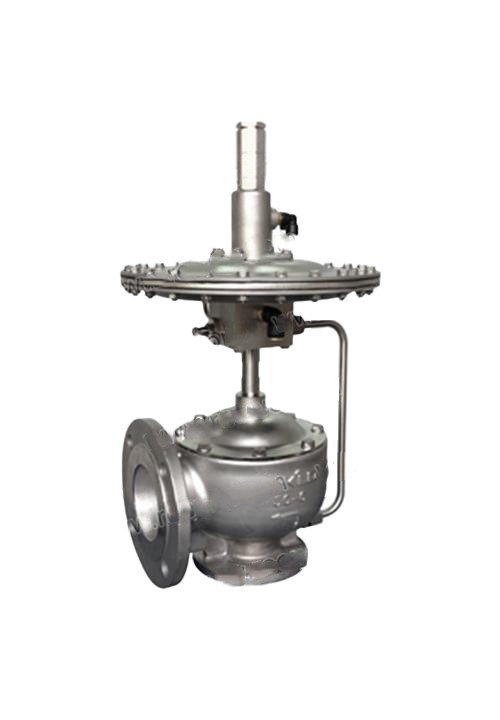

Self-operated Low-pressure Regulating Valve

Self-operated low-pressure regulating valve is mainly used for automatic pressure stabilization under low-pressure and micro-pressure operating conditions. It regulates by using the pressure signal of the medium itself, without requiring an external power supply or air source. Through the combination of spring setting and actuator movement, the valve automatically corrects the plug opening when the downstream pressure deviates from the set value, keeping the pipeline or equipment outlet within a relatively stable low-pressure range. For gas systems that require continuous operation while reducing external control configuration, Self-operated low-pressure regulating valve offers a simple structure, sensitive response, and convenient maintenance.

In practical use, Self-operated low-pressure regulating valve is better suited to low-pressure gas applications with higher requirements for outlet pressure stability. Whether in nitrogen blanketing systems, protective gas systems, low-pressure gas branches, or process sections where higher inlet pressure must be reduced to a lower stable outlet pressure, the valve can automatically respond to pressure fluctuations and reduce repeated system adjustment and manual intervention. For applications that need to maintain slight positive pressure or stable low-pressure output over a long period, Self-operated low-pressure regulating valve is more likely to achieve smooth and continuous operation.

Size: DN15~ DN150

Pressure:-

End connection: RF,RTJ

Material: WCB, WC6, LCB, CF8, CF8M, CF3M, LCB,904L, 316Ti, A105, F304,F316, Duplex stainless steel, Monel, Hastelloy, (Special Materials on Request)

Self-operated low-pressure regulating valve is mainly used in various low-pressure and micro-pressure gas control systems, and is commonly found in nitrogen blanketing, protective gas systems, inert gas transmission, low-pressure gas branches, and process applications that require stable downstream pressure. For systems that need to reduce a higher gas supply pressure smoothly to a lower set value, this type of valve can continuously maintain stable outlet pressure and reduce operational disturbance to downstream equipment caused by pressure fluctuation.

In storage tanks, process vessels, and continuous gas supply systems, Self-operated low-pressure regulating valve is better suited to pressure stabilization rather than simple on-off control. It can automatically adjust valve opening when system flow changes, gas consumption fluctuates, or inlet pressure is disturbed, keeping downstream pressure within the set range. For applications that require a simple system, no additional power source, and stable low-pressure output, self-operated low-pressure regulation is better able to balance control performance, maintenance convenience, and long-term operating reliability.

Since 2009, Huizheng has focused on the automatic control valve industry and owns a 50-mu standardized industrial plant, integrating R&D, design, manufacturing, and sales. Its product range covers pneumatic control valves, electric control valves, self-operated control valves, ball valves, eccentric rotary valves, sliding gate valves, butterfly valves, gate valves, globe valves, and other series, forming a relatively complete control valve manufacturing system. The production facility is equipped with CNC machines, intelligent machining centers, robotic equipment, and testing devices for flaw detection, tensile testing, and spectrographic analysis, meeting manufacturing and inspection requirements for valves under different materials, pressure classes, and project conditions.

These products have already been applied in power generation, metallurgy, petroleum, chemical processing, pharmaceuticals, new energy, and water treatment industries. For products such as Self-operated low-pressure regulating valve, which require both machining accuracy and operating-condition matching capability, a stable manufacturing base and continuous supply capacity help ensure project delivery efficiency, batch consistency, and long-term support.

Self-operated low-pressure regulating valve can be selected and customized according to set pressure range, connection standard, body material, medium condition, and installation method. For project-based requirements, technical parameters can be calculated and matched accordingly, and calculation sheets and drawing support can be provided after the operating conditions are confirmed, so that the product structure remains consistent with the actual site system. Corresponding configuration adjustments can also be made for different gas media, different spring setting ranges, and different installation conditions.

The product supports drawing-based customization, customer design cooperation, and sample testing. For small-batch customized orders, tooling costs may be involved. For batch orders, the final solution and cost allocation can be further confirmed according to the project. The clearer the parameter confirmation is at the early stage, the smoother the later manufacturing, installation, and commissioning process will be.

Huizheng operates under a complete ISO9001 quality management system and applies standardized control throughout manufacturing, pressure testing, packing, and shipment. During order execution, pressure test videos, packing photos, packing lists, and customs declaration documents can be provided to confirm product condition, packing status, and shipping information, making the delivery process clearer and more traceable. For products such as Self-operated low-pressure regulating valve, which are highly dependent on operating-condition matching, inspection during manufacturing and documentation during delivery are equally important.

For after-sales handling, corresponding solutions can be provided according to the actual issue if any abnormal condition is found after delivery. Problems that can be handled remotely will be supported by video guidance, while parts that cannot be repaired on site can be resent according to the actual case. The after-sales team has technical background and can respond more efficiently to installation, commissioning, and operational issues, helping ensure more stable and smoother use later on.
