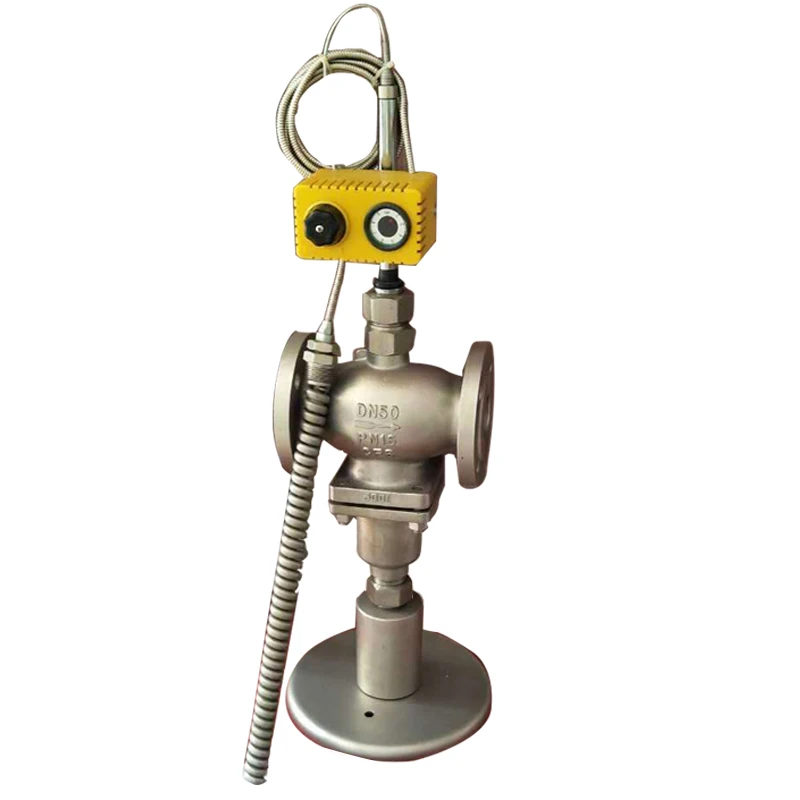

Self-actuated Temperature Regulator

A self-actuated temperature regulator relies on a sensing bulb filled with thermally expanding fluid to drive the valve plug, with no electric power or instrument air required. As process temperature rises or falls, the fill fluid expands or contracts and transmits the force through a capillary to the actuator, modulating flow to hold the set temperature. The bulb can be installed integrally or as a remote unit, so the sensing point can sit on a tank, reactor, or pipe neck while the regulating valve stays accessible. A balanced plug handles wide pressure differentials, and low-, medium-, and high-temperature fill fluids are available to cover different setpoint ranges. The smooth internal flow path resists fouling, and heating-type or cooling-type body construction matches constant-temperature processes that either add or remove heat.

Temperature accuracy depends almost entirely on the sensing bulb. We machine the bulb, capillary, and fill assembly in-house rather than sourcing a generic off-the-shelf thermostat cartridge, which lets us match the fill fluid and capillary length to the customer's actual setpoint band and remote mounting distance - for example, a long capillary that reaches a reactor jacket while the valve stays on an accessible pipe. Building the sensing element ourselves also keeps the +/-2 C to +/-5 C control band consistent across batches, because the element is calibrated alongside the same body and trim.

Chemical reactor jacket temperature control.

The remote bulb mounts directly on the reactor jacket while the valve regulates heating or cooling medium, keeping product temperature stable without a separate controller.

Heating sub-stations and heat exchange stations.

No power or air supply means the regulator can ride on hot water or thermal oil loops where control wiring is impractical; heating and cooling body options match either heat-addition or heat-removal duty.

Pharmaceutical and food sterilization water loops.

304/316L bodies and smooth internal passages suit purified water and hot-water circuits, while soft seats meet hygienic low-leakage expectations.

• Body material: WCB, LCB, 304, or 316L.
• Bulb configuration: integral or remote capillary with custom length.
• Fill fluid: low, medium, or high temperature per setpoint.
• Body function: heating type or cooling type.
• Seat: soft seal Class IV-VI. OEM/ODM production supported on customer drawings and samples.

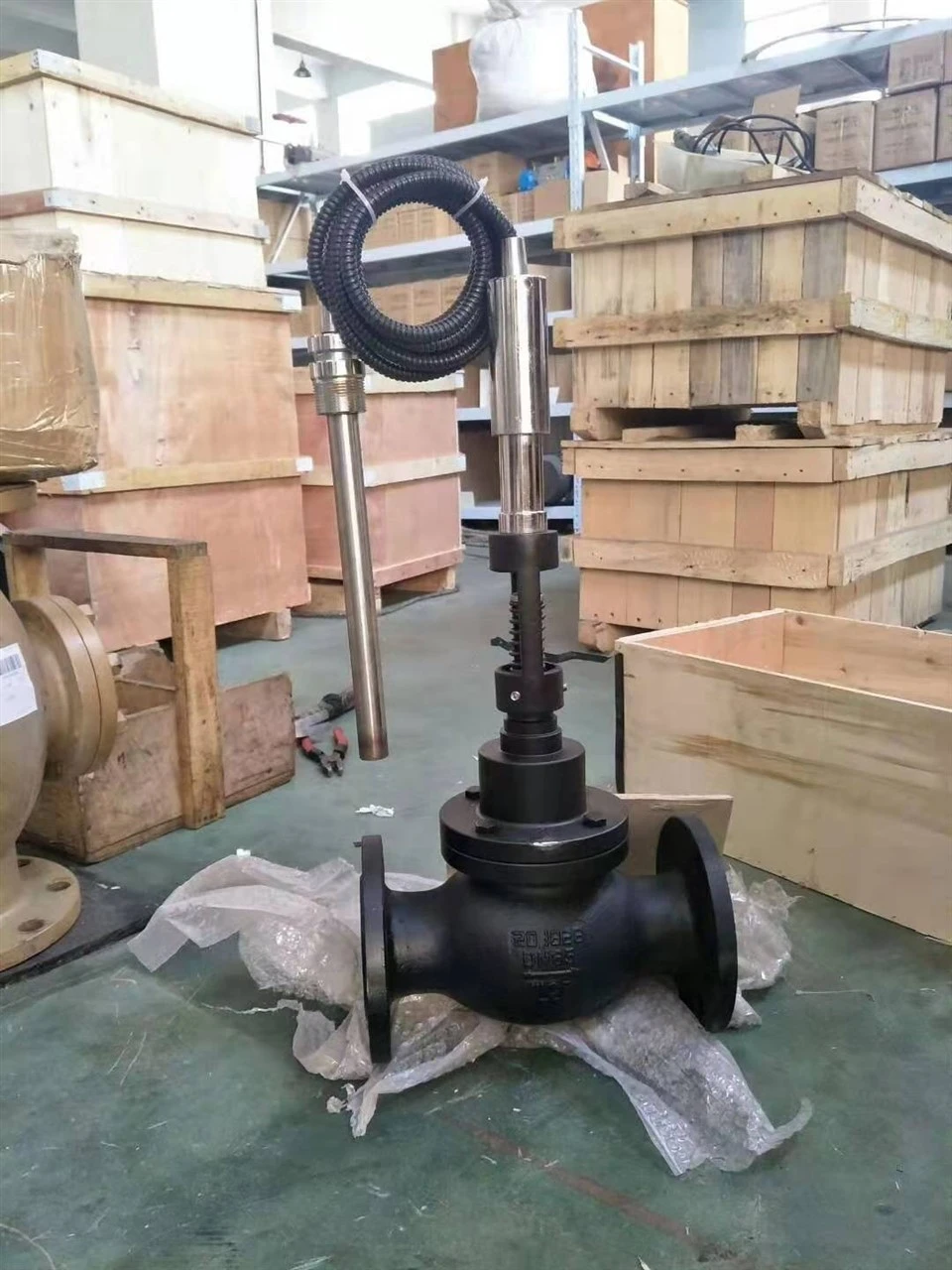

Standard export packing. Each regulator is pressure-tested before dispatch. Pressure-test videos, packing photos, and packing list are shared during production, with full customs documentation for export orders.
