Electro-pneumatic Valve Positioner

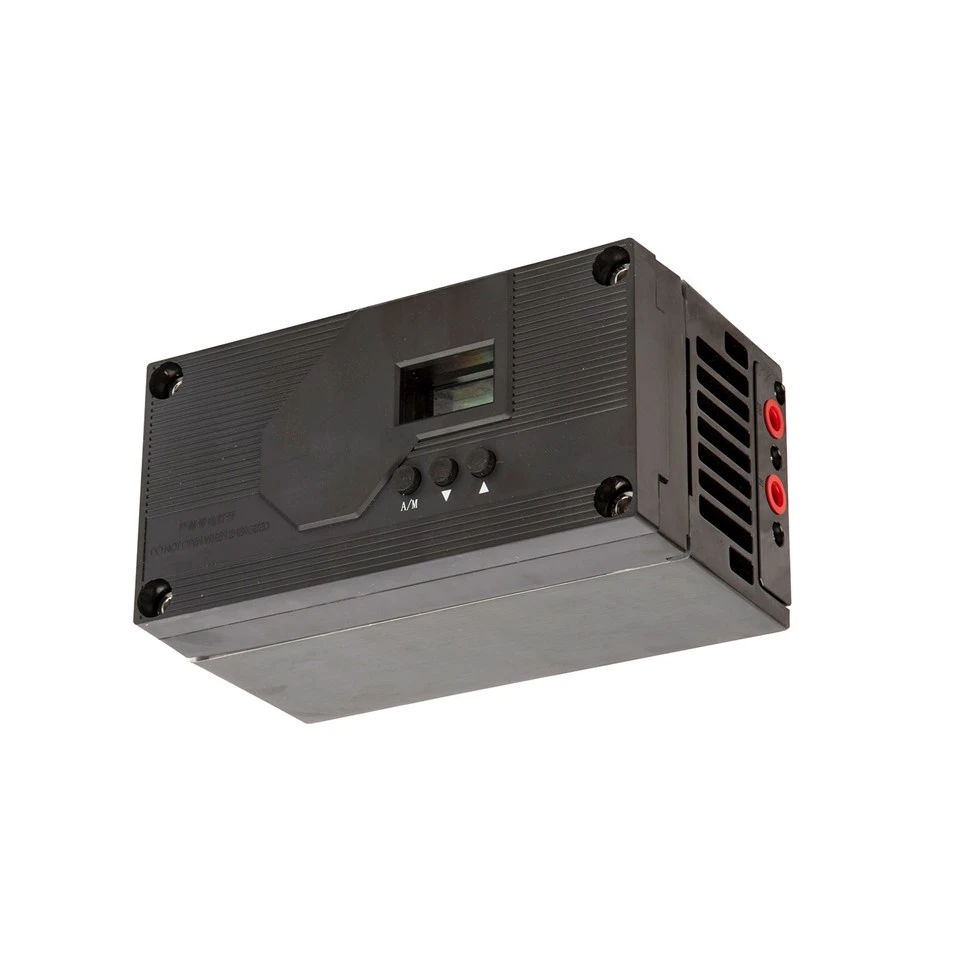

A smart valve positioner is a digital control-loop accessory that mounts on a pneumatic control valve and converts a 4-20 mA current signal into a precise proportional air output for the actuator. Built around an integrated microprocessor and a local LCD module, it runs one-touch automatic stroke calibration, so field commissioning no longer depends on manual flapper-nozzle tuning. It accepts 4-20 mA analog input and supports HART and RS485 Modbus communication, letting valve travel, supply pressure and alarm data be read back into the plant DCS. Onboard self-diagnostics continuously detect valve stiction, air-supply leakage and signal faults and raise alarms before a process trip occurs. Its vibration- and dust-resistant pneumatic module, IP67 enclosure and optional Ex d IIB T4 explosion-proof construction are aimed at heavy-duty processes where conventional analog positioners tend to drift.

Because a smart positioner merges firmware, pneumatics and sensing into one device, its accuracy depends less on assembly labor than on engineered electronics. Our control R&D team develops the positioner's digital board and signal logic in-house rather than reselling generic modules, which lets us tune the auto-calibration and diagnostics behavior to diaphragm, cylinder and scotch-yoke actuators alike. For sites in cold climates or hazardous areas, this same engineering base supports customized explosion-proof and low-temperature variants, so a buyer does not have to source a certified electronic part separately from the valve.

1. Petrochemical high-temperature and high-pressure control valves

The digital feedback and self-diagnostics keep travel accurate where packing friction and differential pressure would make an analog positioner drift, reducing unplanned trips on critical trim.

2. Coal-chemical slurry and FGD desulfurization valves

The IP67 dust-sealed housing and vibration-resistant pneumatics hold calibration in dusty, vibrating slurry service, and HART diagnostics flag wear before the valve sticks.

3. Large power-plant smart steam lines and lithium-battery automated lines

Modbus/HART readback feeds valve health into the DCS, enabling predictive maintenance on remotely operated islands where manual walk-downs are costly.

• Explosion-proof variant (Ex d IIB T4) for hazardous areas
• Low-temperature and corrosion-resistant variants for cold-site or corrosive service
• Communication selection: 4-20 mA analog, HART or RS485 Modbus
• Mounting brackets for diaphragm, cylinder and scotch-yoke actuators
• OEM/ODM branding and firmware configuration per project
• Sample testing under the customer's actuator and working conditions

Standard export packing for the positioner and its mounting kit. Before shipment we provide the signal-calibration test video, packing photos, packing list and the customs documents required for export orders. The cargo is tracked through logistics; if a part arrives damaged we send a remote video repair guide or ship replacement parts immediately.
