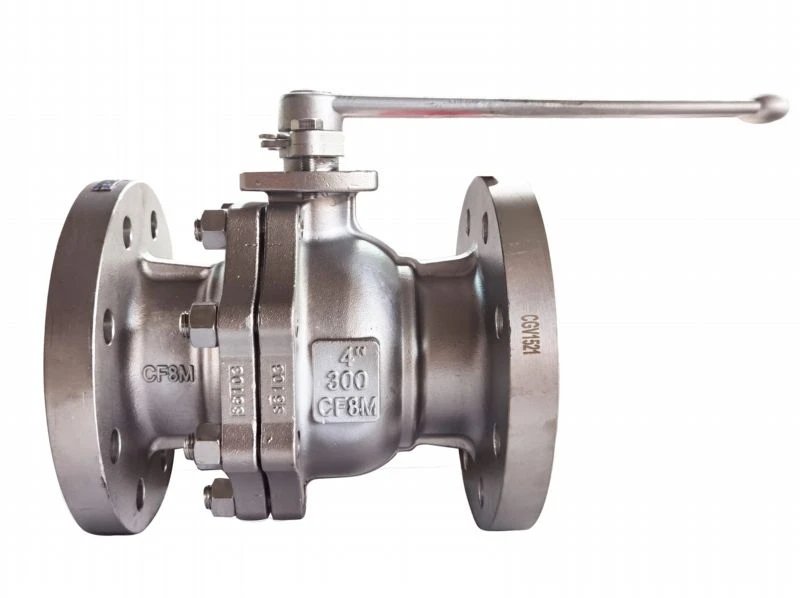

A floating type ball valve uses a ball that floats slightly off its stem axis: line pressure pushes the ball against the downstream seat, creating a tight, self-energized seal. The design is simple and compact, with few moving parts, so maintenance is straightforward and total cost of ownership stays low. A full-bore straight-through port gives near-full pipe bore with minimal flow resistance and no pockets for product buildup. Two seat options cover different duties: PTFE soft seats deliver Class VI shut-off on clean, ambient fluids such as water, gas, and oil, while metal hard seats extend the valve to high-temperature oil and steam service. Flanged, threaded, and wafer ends are available, and smaller bodies can be fitted with pneumatic or electric actuators for automated on-off.
For isolation valves bought in volume, consistency across the batch matters as much as unit price. We keep large stock of standard cast bodies in WCB, 304, 316L, and ductile iron in common sizes, so repeat orders come off the same body castings and seat geometries rather than a new pattern each time. Stocked bodies ship in about 10+ days, which keeps project schedules on track without dropping the 100% pressure-testing we apply to every valve.
Specifications
|
Parameter |
Specification |
|
Nominal size |
DN15-DN200 |
|
Nominal pressure |
PN16/PN25/PN40, Class150-Class300 |
|
Seat type |
PTFE soft seat / metal hard seat |
|
Connection |
Flanged, threaded, wafer |
|
Body material |
WCB, 304, 316L, ductile iron |
|
Suitable media |
Water, natural gas, oil, non-corrosive liquids, steam |
|
Media temperature |
-30 to 350 C |
|
Leakage class |
Class VI (soft seat) / Class IV (metal seat) |
Applications
Water supply and drainage piping.
Compact body, full bore, and PTFE seats give a low-cost, low-maintenance isolation valve for clean and waste-water lines.
Natural gas and refined product transfer.
The floating ball design gives reliable shut-off with low operating torque, and anti-blow-out stem with soft-seat Class VI sealing meets typical gas and oil on-off expectations.
HVAC and heating shut-off.
Quarter-turn operation and threaded or flanged ends make the valve easy to install on building heating and chilled-water loops, where fast, dependable on-off matters more than throttling.
Customization
- Connection: flanged, threaded, or wafer.
- Seat: PTFE soft seat (Class VI) or metal hard seat (Class IV).
- Body material: WCB, 304, 316L, or ductile iron.
- Actuation: manual, pneumatic, or electric on smaller sizes. Special sizes and materials available on customer drawing.
Packaging & Transportation
Standard export packing. Every valve is pressure-tested before dispatch. Pressure-test videos, packing photos, and packing list are shared during production, with complete customs documents for export orders.
FAQ
Q1. What is the delivery time?
A. We keep large stock of standard body castings in common materials and pressures; stocked bodies ship in about 10+ days. If a special body needs a new casting, lead time is longer but matched to the project schedule.
Q2. What are your payment terms?
A. As a source manufacturer we offer low-margin factory pricing; payment is by T/T. A deposit is required for customized orders; the deposit ratio depends on order customization level and is negotiable for standard items.
Q3. What if the product is damaged on arrival?
A. We assess the damage; if repairable we send a video guide, and if not repairable we immediately ship replacement parts.
