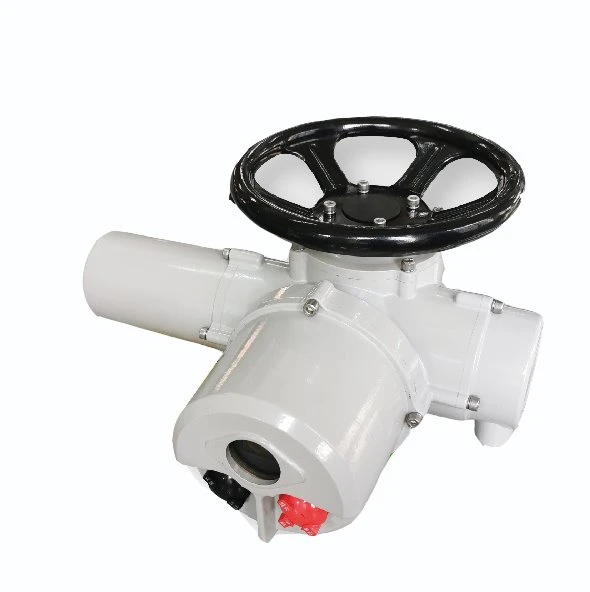

A Smart Electric Actuator is an electrically driven valve drive built around a digital mainboard, an LCD local display and a high-resolution position sensor, eliminating the need for a separate servo amplifier. A 4-20 mA control signal is accepted directly, and the mainboard also speaks HART and RS485 Modbus so the unit drops into a plant DCS or PLC network for remote setpoint, valve-position feedback and diagnostics. The LCD shows current opening, setpoint and fault codes on site, while the digital electronics run self-diagnostics and protect the valve through loss-of-signal action (hold, open or closed selectable), over-temperature protection and stall/overload protection. The range covers both quarter-turn output (0~90°) and linear thrust output (20~100 mm travel), with control accuracy around ±0.3% of full scale. A local manual override lets operators hand-drive the valve on power loss, and a remote/local selector switch keeps commissioning and field operation safe. The enclosure is rated IP67, with an optional Ex d II BT4 explosion-proof version for hazardous areas.
Buyers integrating electric actuators into a DCS usually need two things generic catalog actuators cannot offer: a communication protocol matched to their control network, and an explosion-proof or cold-climate variant without a long outsourcing chain. Our actuator R&D group develops the mainboard firmware and power stage in-house, so we can tune the HART/Modbus mapping, add the Ex d II BT4 or low-temperature version, and validate the unit on our own aging and signal-accuracy benches before shipment.
Specifications
|
Parameter |
Specification |
|
Communication |
4-20 mA analog, HART, RS485 Modbus |
|
Power supply |
AC220V, AC380V, DC24V optional |
|
Output type |
Quarter turn 0~90° / linear stroke 20~100 mm |
|
Control accuracy |
±0.3% FS |
|
Safety functions |
Loss-of-signal hold/open/close, over-temp, stall protection |
|
Display |
Local LCD with fault code indication |
|
Protection rating |
IP67, optional Ex d II BT4 explosion-proof |
|
Ambient temperature |
-30°C ~ +85°C |
Applications
Large petrochemical process units
HART and Modbus integration lets the actuator report valve position and faults straight to the DCS, while the optional Ex d II BT4 enclosure allows installation in classified areas without a separate purged enclosure.
Power plant steam main control valves
The ±0.3%FS resolution, loss-of-signal hold action and local LCD provide the closed-loop accuracy and operator visibility that main steam and feedwater control loops require.
Coal chemical and lithium-battery automated lines
Digital bus communication replaces hard-wired 4-20 mA marshalling, cutting wiring cost on long automated production lines and allowing remote setpoint changes from the control room.
Customization
- Communication protocol selection: 4-20 mA, HART or RS485 Modbus
- Explosion-proof Ex d II BT4 version or low-temperature version on request
- Quarter-turn torque or linear thrust class matched to the valve
- Loss-of-signal action configured as hold, open or closed
Packaging & Transportation
Actuators are packed in export cartons with foam lining and moisture desiccant, then sealed in wooden cases for ocean freight. We run bench signal-accuracy and aging tests before dispatch and send test videos, packing photos, a packing list and the required customs documents.
FAQ
Q: Can you accept our design?
A: Yes. We manufacture to customer drawings and control-system requirements, including the communication protocol, power supply, loss-of-signal action and any explosion-proof or low-temperature variant the project calls for.
Q: How do you guarantee quality?
A: Every actuator is checked for signal linearity, travel accuracy and protection functions under our ISO9001 system before release, and we provide aging-test videos with the order.
Q: What after-sales support do you offer?
A: We keep a dedicated after-sales team with valve and control-instrument backgrounds, track the shipment throughout, and offer remote video guidance on commissioning. Replacement control boards or power modules are shipped quickly if a field issue arises.
